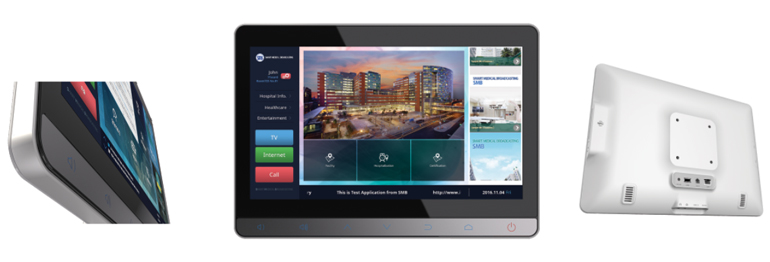

Bedside Smart Terminal - SMB 1000 series

SMB1013
SMB1015
Screen size (inch) : 13.3 Screen size (inch) : 15.6
Display : Resolution 16:9 / FHD 1920 x 1080 Display : Resolution 16:9 / FHD 1920 x 1080
Weight (Kg) : Light-weight, 1.8 Weight (Kg) : Light-weight,2.0
Size W x H x D (mm) : Slim design,
thickness 11(edge) ~ 30mm (center)
(350 x 245 x 30)		 Size W x H x D (mm) : Slim design,
thickness11 (edge) ~ 37mm (center)
(390 x 280 x 37)

User Interface
  • User interface Capacitive 10-point Multi-touch screen, P-CAP touch technology
  • Front-bezel touch buttons:
    • - 1 x Power on/off
    - 2 x Volume control
    - 2 x Channel control
  • Reset button
Computing platform
  • CPU : ARM Cortex A53, Quad core 1.8GHz
  • Video : Hardware-accelerated video decoding support for H.264 and MPEG-2 Support for UDP multicast video streaming
  • Firmware : DMI information with unique identifier information
  • Storage capacity : 8GB, on-board (nand Flash or eMMC)
  • System memory : 2GB, on-board
  • Operating system Android 5.1 or 6.0
Medical environment
  • Antibacterial material
  • IP65 front face
  • Tempered glass Surface hardness 6H
Peripherals & Devices
  • TV tuner
    • - Optionally as separate SKU
    - Analog TV standards support : PAL, NTSC
    - Digital TV standards support : DVB-T/C, ATSC, (ISDB-T)

  • Webcam : Integrated Camera (>=HD 720p ), with white LED indicator
  • Audio : Integrated stereo speakers, 2 x >=2 Watt Internal digital microphone
  • Card reader
    • - Contactless Card reader: RFID reader or NFC reader with RFID support
    - Contact Card reader: Smart Card reader for CPU and Memory cards
  • Bluetooth : BT4.0 (BLE support)
Power
  • DC input
  • Power-over-Ethernet
  • PoE IEEE 802.3af-2003 compliant
  • Power consumption < Max. 15W (run on PoE)
  • Power over Coax (24VDC/ 28VAC) for TV Tuner
Accessory
  • Handset: mechanical mounting option for cradle on the side Connector with USB connection to mainboard and wires for service call to back I/O RJ11
※ SMB1017 : 17.3 is available on request
