SMB Mounting ARM

Designed mounting for Convenience and minimum Space
  • Up/Down, left/right easy positioning, increase maximum Viewing comfort
  • Help reduce eye strength, back/neck strain
  • Any place Mounting at Wall, Floor, Ceiling, Cabinet and Bed frame
  • Simple installation and position for minimum space

Mounting ARM A100 (Swivel Hinge Arm)

Mounting ARM A100 (Swivel Hinge Arm)
Mounting ARM A100 (Swivel Hinge Arm) table

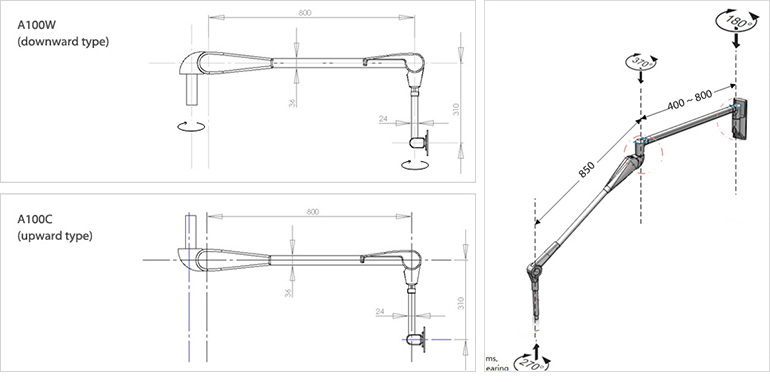

specification
model smb a100
length from axle to axle: l1 = 830mm (length adjustable)
length of front arm : l2 = 900mm (length adjustable)
tube diameter : 36 mm
net weight : hinge arm 6.40 kg
terminal extension arm 0.40 kg

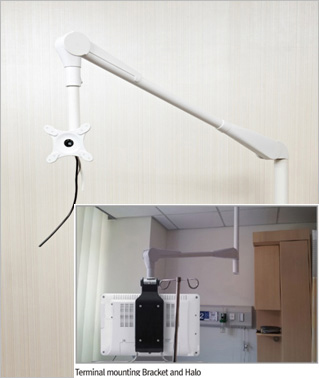

terminal mounting bracket 0.40 kg
loading capacity : 2~8 kg/ 8~12kg/ 12~18kg
up and down : 0 ~ 43 max 43° without steps
wall rotation : 90° ~ 360° adjustable

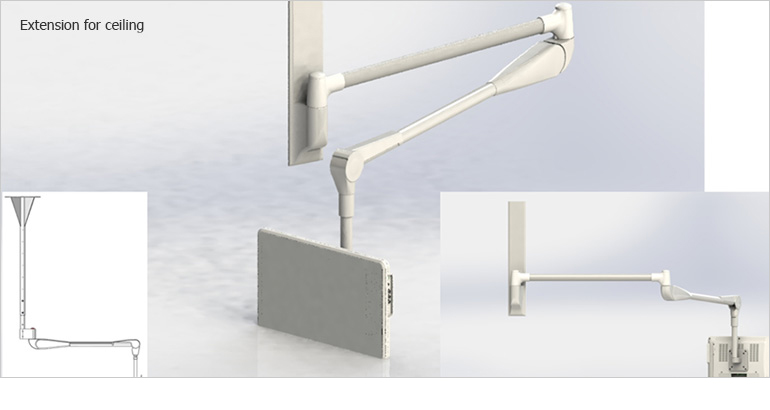

wall mounting, ceiling mounting possible

A100 ARM Swivel Hinge Arm
Extension Arm: 400mm, 1100mm, 2100mm (option)

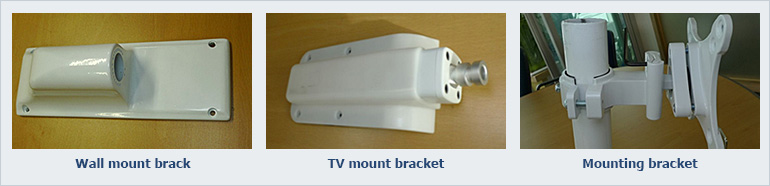

Wall Mount Bracket

Mounting ARM A100 (Swivel Hinge Arm) Mounting ARM A100 (Swivel Hinge Arm)

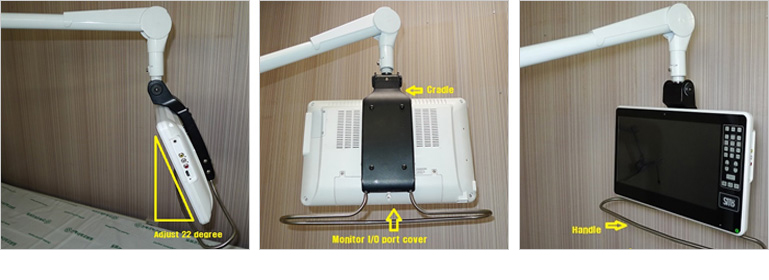

Mounting Cradle

Wide handle : easy viewing control & terminal protection
Cradle Tilt : 0~22°degree for convenient Easy control viewing angle
Cables and I/O ports closed
Arm easy control
